3.7v lithium ion battery cells with welded tab, high power lithium ion 3.7v battery cell,3.7v lithium battery with two tabs

FOB Reference Price:Get Latest Price
$1.00 - $10.00 / Packs | 1 Pack/Packs (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
LITHPOWER
Model Number:
LP-1S50E/100E/200E
Nominal Capacity:
5Ah/10Ah/20Ah
Nominal Voltage:
3.2V
Type:
LiFePO4 Technology
Battery Type:
LiFePO4 Technology-LiFePO4 Battery Cells
Application:
18650/26650/3.2V5AH/10AH/20AH punch cells
Features:
High Power
Designing:
SoftPack
Point:
Easy connection with cells holders
Size:
Flexible
Supply Ability
Supply Ability:
8000 Pack/Packs per Month
Packaging & Delivery
Packaging Details
Standard Exporting Packing/ Custom Carton Box
Port
SZ/HK
Lead Time :
15 DAYS

Specifications

1, 3.7v lithium ion battery
2, 3.7v lithium battery
3, lithium ion 3.7v battery
4, 3.7v lithium ion battery with welded tabs

 High power lifepo4 18650/26650 battery cells, 3.2V 5AH,10AH and 20AH lifepo4 punch, softpack battery cells. High power lifepo4 battery cell 3.2V20AH, and with long lifecycle lifepo4 3.2V10Ah. high power 3.7v2200mah lithium ion battery cell, 18650 lithium ion battery, 3.7v 18650 lithium ion battery, 3.7v lithium ion 2200mAh battery cell, high power 3.7v lithium ion battery cell,lithium ion 3.7v battery, 3.7v lithium ion battery cell with welded tabs

LITHPOWER offers different 3.2V lifepo4 battery cells, high power 3.2V lifepo4 cell, lifepo4 3.2V battery cell, 2000 cycles 3.2V lifepo4 battery cell and safest 3.2V lifepo4 cells.

lithpower offers different 3.2v lifepo4 battery cells, high power 3.2v lifepo4 cell, lifepo4 3.2v battery cell, 2000cycles 3.2v lifepo4 battery, like 3.2v5ah lifepo4 cell, 3.2v10ah lifepo4 punch cell,lifepo4 3.2v15ah battery cell,3.2v20ah lifepo4 battery cell

SHENZHNE LITHPOWER provides a vertical supply chain from LiFePO4 single cells, battery packs to Battery modules with matched BMS as well Chargers as a completely turn-key power solution. We provides a vertical supply chain from LiFePO4 single cells, battery packs to Battery modules with matched BMS as well Chargers as a completely turn-key power solution for our customers.

UL/CE approved LiFePO4 cells; MSDS testing on modules, qualified built-in BMS; Good record in quality and UN38.3 for dangerous goods transportation.



Model

14500E LiFePO4 Cell

18650E LiFePo4 Cell

26650E LiFePO4 Cell

18650P LiFePO4 Cell

26650P LiFePO4 Cell

18650E NCM Cell

26650E NCM Cell

Soft Pack/Punch Cell

Nominal Capacity

550mAh

1.5/1.6 Ah

3.3 AH

1.1 AH

2.3 AH

2.2Ah

4.5 Ah

5Ah/6Ah/8AH/10AH/20AH

Nominal Voltage(V)

3.2

3.2V

3.2V

3.2V

3.2V

3.7V

3.7V

3.2V

Max. Voltage(V)

3.65

3.65V

3.65V

3.65V

3.65V

4.2V

4.2V

3.65V

Standard Charge Current(C)

0.2-0.5C (CC-CV)

0.2C-0.5C (CC-CV)

0.2-0.5C (CC-CV)

0.2-0.5C (CC-CV)

0.2-0.5C (CC-CV)

0.2-0.5C (CC-CV)

0.2-0.5C (CC-CV)

0.2-0.5C (CC-CV)

Max. Constant Discharge Current(C)

1-2C

1-2C

1-2C

10-20C

10-20C

1-2C

1-2C

1-2C

Max. Pulse Current

3C

3C

3C

30C

30C

3C

3C

3C

Approx. Weight(g)

23g

48g

88g

48g

88g

48g

88g

Flexible

Approx. Dimensions

14X50mm

18X65mm

26X65mm

18X65mm

26X65mm

18X65mm

26X65mm

Flexible

Cycle Life(80% DOD)

>2000 cycles

>2000 cycles

>2000 cycles

>2000 cycles

>2000 cycles

>800 cycles

>800 cycles

>2000 cycles

Self-discharge Ratio/month

≤3%

≤3%

≤3%

≤3%

≤3%

≤3%

≤3%

≤3%

Temperature

Charge

-10°C~45°C

-10°C~45°C

-10°C~45°C

-10°C~45°C

-10°C~45°C

-10°C~45°C

-10°C~45°C

-10°C~45°C

Discharge

-20°C~55°C

-20°C~55°C

-20°C~55°C

-20°C~55°C

-20°C~55°C

-20°C~55°C

-20°C~55°C

-20°C~55°C

Storage

-10°C~35°C

-10°C~35°C

-10°C~35°C

-10°C~35°C

-10°C~35°C

-10°C~35°C

-10°C~35°C

-10°C~35°C



Battery Comparison

         Smaller size, normally 1/3 as large as conventional SLA battery;

  • Lighter weight, normally 1/3 as conventional SLA battery;
  • Longer cycle-life, SLA battery is about 300cycles while LiFePO4 battery can be 2000 cycles or more;
  • Good performance in deep discharge,LiFePO4 battery can be 100%DOD while SLA battery is 60%70%DOD,which means LiFePO4 battery will need less capacity in the same condition;
  • Totally environmental-friendly

Features:

A. Extremely safe and stable chemistry: PCB and/or BMS built inside to balance protect the battery.

B. Long life-cycle: Can be circularly used, best can up to 2000 times recycles, 8 times of Lead acid battery.

C. Lighter weight, with the best power-to-weight ratio: 1/3 of Lead acid battery weight.

D. Good performance at high temperature and high temperature resistance

E. Low self-discharge rate, less than 3% monthly.

F. No memory effects and highly efficient charge.

G. Environment friendly: Clean and Green energy poses no pollution on our environment.

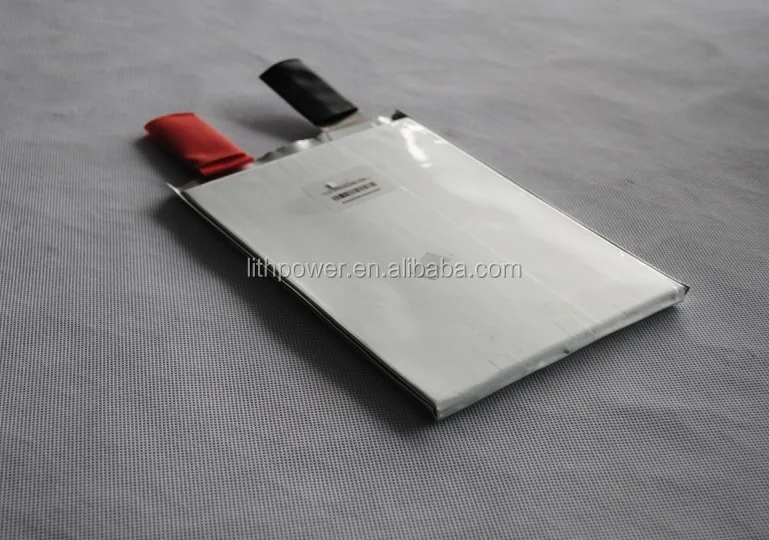

Our LiFePO4 18650-3.2V1.5/1.6AH and 26650-3.2V3.3AH high power battery cells, and 3.2V lifepo4 softpack/punch 5AH,10AH and 20AH cells. With cell holder, Easy for connection and assembly.
